Research on the Influence of Brown Fused Alumina Micropowder on Material Surface Roughness
In our line of work, especially in surface treatment or materials processing, we deal with the indicator of “roughness” almost every day. It’s like the “fingerprint” of a material, directly determining whether a subsequent coating can adhere, how wear-resistant parts are, and even the sealing effect of an assembly. Today, let’s not talk about those high-level theories, but sit down and chat like colleagues about our most familiar old friend—brown fused alumina micropowder—and how it “manages” the surface roughness of materials.
I. First, let’s understand: What exactly is brown fused alumina micropowder?

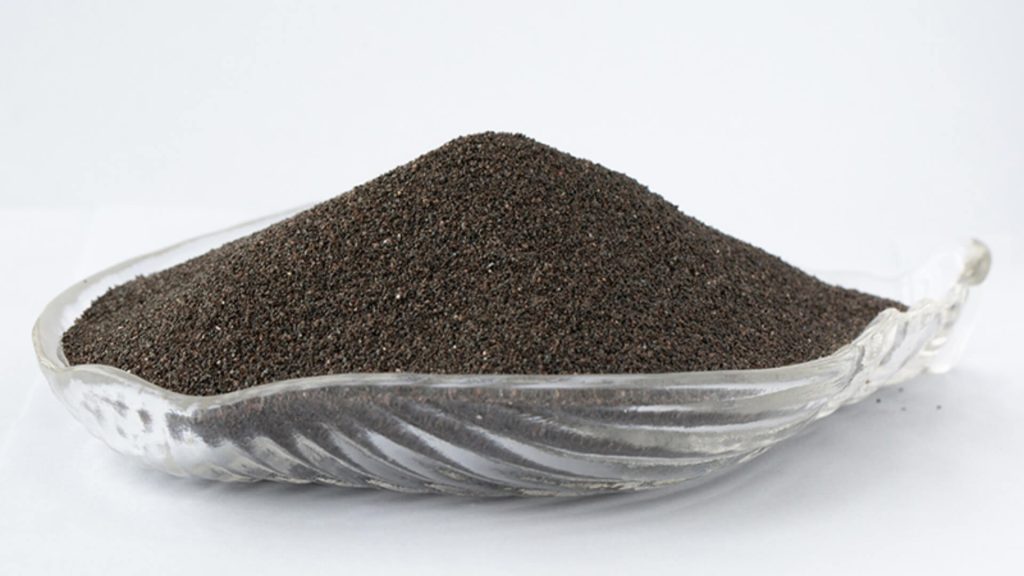

Brown fused alumina, simply put, is what we “refine” using materials like alumina and coke in an electric arc furnace. Because it contains some titanium and iron oxides, it has a brownish color, hence the name. It has high hardness, good toughness, and is affordable, making it a “mainstay” in sandblasting and grinding.
And the term “micropowder” is key. It refers to the extremely fine powder obtained by crushing and sieving brown fused alumina through a special process, with a particle size typically ranging from several hundred to several thousand meshes. Don’t underestimate this powder; it’s no longer a rough “wood-chopping knife,” but a precision “sculpting knife.” Its emergence has allowed brown fused alumina to move from heavy-duty tasks like removing thick oxide scale from castings to the field of precision machining, where extremely high surface quality is required.
II. How Does It “Sculpt” the Surface? – A Dynamic Microscopic World
Many people think sandblasting is simply hitting the surface with sand, and the harder you hit, the rougher it becomes. That’s half true, but for those of us who study micro-powders, the other half is the essence. The influence of brown fused alumina micro-powder on surface roughness is a complex dynamic process, which I summarize into three main effects:
“Drilling” Effect (Macro-Cutting): This is the most intuitive. High-speed flying micro-powder particles, like countless tiny hammers and chisels, impact the material surface. Harder particles will directly “bite” away at the material, forming tiny pits. This stage is the main driver of rapidly increasing surface roughness. Imagine a smooth surface being gouged out with countless tiny pits; the difference between peaks and valleys increases dramatically, naturally raising the roughness values (e.g., Ra, Rz).
“Plowing” effect (plastic deformation): This is interesting. When particles don’t impact the surface head-on perpendicularly, but rather “scrape” it across at an angle, they might not directly cut through the material. Instead, like plowing, they “squeeze” the surface material to the sides, forming a raised “groove.” This process doesn’t directly remove material, but through plastic deformation, it alters the surface morphology, increasing the difference between peaks and valleys.
“Compacting” and “fatigue” effects: Under the continuous impact of microparticles, the material surface undergoes a process of “refining” through repeated impacts. Early impacts might loosen the surface, but continuous impacts actually “compact” the surface layer, forming a dense, reinforced layer. Simultaneously, repeated impacts cause fatigue in the material’s surface microstructure, making it easier for subsequent particles to remove.
As you can see, even a simple sandblasting process involves three effects simultaneously and interacting with each other in the microscopic world: “digging,” “plowing,” and “tamping.”
III. The Three Key Factors Affecting the Results: Particle Size, Pressure, and Angle
Now that we understand the principle, how do we “command” the brown fused alumina micropowder to achieve the desired surface roughness in actual operation? It mainly relies on these three key factors:
First Factor: Particle Size (How coarse should the powder be?)
This is the most crucial parameter. Simply put, under the same conditions, the coarser the particles, the greater the surface roughness value. Using 80-mesh coarse powder will produce a very rough surface in a few strokes; but if you use W40 or even finer micropowder, the resulting surface will be very smooth and have a fine feel. This is similar to sanding wood with coarse sandpaper versus fine sandpaper—the results are vastly different. Therefore, to obtain a low surface roughness, selecting fine micropowder is the first step.
The second key element: Spray pressure (How much force?)
Pressure is the energy given to the particles. The greater the pressure, the faster the particles fly, the more kinetic energy they have, and the more aggressive the “digging” and “plowing” effect, naturally resulting in greater roughness. However, there’s a pitfall: higher pressure isn’t always better. Excessive pressure can lead to over-cutting, even damaging the dimensional accuracy of the workpiece, or even breaking brittle materials. Our experience is that, while meeting cleaning and roughness requirements, it’s best to use the lowest possible pressure—”use the best steel where it counts.”
The third key element: Spray angle (From which direction?)
Many people overlook this parameter. Research shows that when the spray angle is between 70° and 90° (nearly perpendicular), the increase in roughness is most significant because the “digging” effect dominates. When the angle becomes smaller (e.g., 30°-45°), the “plowing” effect becomes more pronounced, resulting in a different roughness profile. If we want to clean a surface but don’t want it to become too rough, we sometimes use a smaller angle to achieve a balance between cleaning and roughness.
IV. The “Secrets” and Reflections in Practical Application
Theory alone is not enough; there are many “secrets” to be found in actual work.
For example, the “temperament” of the workpiece (the inherent properties of the material) is crucial. Using the same parameters to machine high-hardness quenched steel versus soft aluminum will yield completely different results. Soft materials are more prone to plastic deformation, producing deep and wide “grooves” and easily becoming clogged; hard materials are more likely to flake off brittlely, forming more pits.
Another example is the “lifespan” of the micro-powder. Brown fused alumina micro-powder will wear down and break over time. A new batch of powder has uniform particle size, sharp edges, and strong cutting force, producing a uniform and relatively large roughness. However, used powder, with rounded edges and smaller particle size, becomes “old and worn,” with reduced cutting force, potentially producing a smaller and more uniform roughness, suitable for consistent surface “satin” finishes. It all depends on your process requirements.
Therefore, studying the effect of brown fused alumina micro powder on surface roughness is not simply a matter of looking at the material and working accordingly. It is an art of precise control in the microscopic world. We need to be like an experienced traditional Chinese medicine doctor, skillfully mastering the properties and pathways of the “medicinal herbs” such as “particles, pressure, and angle,” and then combining this with the “constitution” of the workpiece material, in order to prescribe the most effective “remedy” and achieve that perfect surface roughness.
