Cerium Oxide vs. Aluminum Oxide Polishing Powder: A Comprehensive Comparative Analysis

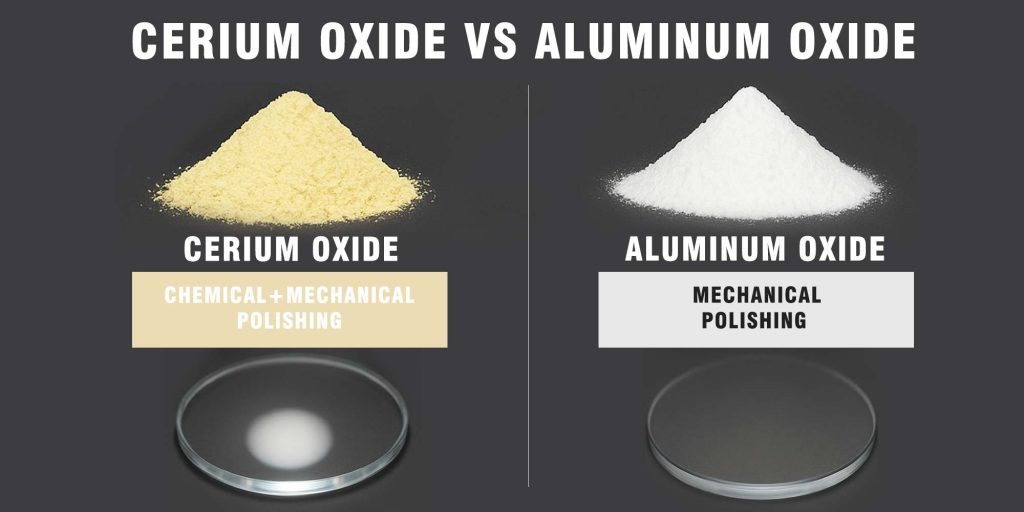

In precision machining in the glass and optics industries, polishing powder is a key material determining the final surface quality, brightness, and defect rate. Cerium oxide (CeO₂) and aluminum oxide (Al₂O₃) are the two most widely used polishing materials, but they differ significantly in material structure, polishing mechanism, hardness, efficiency, and final surface effect. Therefore, the correct selection of polishing powder not only affects processing efficiency but also directly impacts the yield and total cost of the finished product. Cerium oxide, as a rare earth material, possesses a unique Ce³⁺/Ce⁴⁺ reversible valence state, enabling it to produce a slight chemical reaction upon contact with silicates in glass. An extremely thin softening reaction layer forms on the glass surface during polishing, which is gently removed by the combined action of the polishing pad and mechanical motion. This “chemical + mechanical” composite removal method is known as CMP (Chemical Mechanical Polishing), which is the core reason why cerium oxide polishing is fast, efficient, and produces extremely low surface defects. In contrast, alumina is a traditional mechanical abrasive with a Mohs hardness of 9, second only to corundum and diamond. The polishing process relies entirely on the sharp edges, hardness, and external force of the particles, representing typical pure mechanical grinding without a chemically softening layer. Therefore, the removal process is coarser, easily causing deeper micro-scratches, especially noticeable in the polishing of transparent glass.
In terms of material hardness, cerium oxide has a Mohs hardness of approximately 6, close to that of glass, making it gentler when contacting transparent materials and almost eliminating deep scratches. Alumina, with a hardness of 9, is suitable for high-hardness materials such as metals, ceramics, and the initial polishing of sapphire. However, when used on glass, pressure must be reduced to avoid causing a matte finish, scratches, or even micro-cracks, leading to decreased transparency. For optical-grade surfaces, alumina is significantly less stable than cerium oxide. Regarding particle size, both can achieve a range of 0.3–3 μm, but cerium oxide particles are typically more rounded and have a narrower particle size distribution, making them more suitable for fine polishing; alumina particles have sharper edges, making them more suited for rapid cutting. In terms of suspension, cerium oxide, after surface modification, maintains excellent dispersibility in polishing slurries, is not prone to agglomeration or sedimentation, and is very suitable for long-term continuous processing. Alumina, on the other hand, has a higher density and settles faster, requiring continuous stirring, making it less suitable for automated production lines.
Comparing their polishing efficiency, cerium oxide, due to the presence of a chemical reaction layer, often achieves a higher material removal rate (MRR) while maintaining better surface quality, showing stability particularly in continuous processing of large-area glass, optical lenses, and mobile phone cover plates. While alumina has high hardness and theoretically a fast removal speed, it is highly dependent on external force and cutting angle, has a narrow process window, and is susceptible to scratches even with slightly higher pressure. Therefore, in actual mass production, it is often less stable than cerium oxide, resulting in lower efficiency. The difference in surface quality is even more pronounced. Cerium oxide can achieve optical-grade surfaces with Ra < 1 nm, high transparency, and virtually no matte finish, making it the preferred choice for lenses, laser optical components, sapphire windows, and high-end glass. Alumina, due to pure mechanical grinding, often produces varying degrees of scratches, stress layers, and subsurface damage, resulting in a significant decrease in transparency. For processes like final polishing of mobile phone glass, fine polishing of cameras, and polishing of semiconductor optical windows, alumina is insufficient and can only be used for initial rough polishing.
From a process compatibility perspective, cerium oxide is more adaptable, less sensitive to parameters such as pH, polishing pad, pressure, and speed, and easier to adjust. Alumina, on the other hand, is highly sensitive to pressure and rotation speed; slight miscontrol can result in scratches or uneven surfaces, narrowing its processing window. Furthermore, alumina settles quickly, leading to higher maintenance costs and greater difficulty in process management. In terms of cost, alumina is indeed cheaper per unit, while cerium oxide, as a rare earth material, is slightly more expensive. However, the glass processing industry focuses more on total cost of ownership (TCO), i.e., efficiency + yield + consumables + labor + rework losses. The final conclusion is often: while alumina is cheaper, its scratch and rework rates are higher; while cerium oxide is more expensive per unit, it offers higher efficiency, lower defects, and a higher yield, resulting in a significantly lower total cost. Therefore, the optics, consumer electronics, and architectural glass industries almost universally choose cerium oxide as their primary polishing powder.
In terms of application scope, cerium oxide holds an absolute advantage in almost all fields requiring transparency, uniformity, and optical-grade brightness, including mobile phone cover glass, camera lenses, automotive cameras, laser optical components, microscope slides, quartz glass, sapphire windows, and fine polishing of architectural glass. In contrast, alumina is suitable for opaque metals, ceramics, stainless steel, molds, metal mirrors, and rough grinding of sapphire, where high cutting forces are required. In short: choose cerium oxide for transparent materials, and alumina for hard materials; choose cerium oxide for surface quality, and alumina for cutting speed.
Overall, cerium oxide, with its unique CMP mechanism, stable process window, high efficiency, and high-quality surface, has become an irreplaceable polishing material in the glass and optics industries. While alumina is low in cost and high in hardness, it is more suitable for polishing high-hardness, non-transparent materials such as metals and ceramics. For companies requiring large-volume, stable production lines and low defect rates, alumina is insufficient for the final polishing requirements of transparent glass, while cerium oxide is the best solution for high-end product surface finishing.
